771-9973/206-804 | WAGO

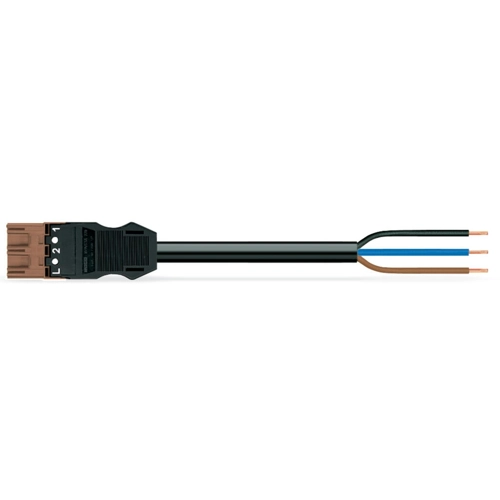

Connection line, 8 m, plug, 3 pole straight to open end, 1.5 mm², 771-9973/206-804

Order No.: 45P4040
EAN: 4050821311379
MPN:
771-9973/206-804
Series: 771
WAGO
771-9973/206-804 WAGO Pre-assembled Connector Systems Image 1
771-9973/206-804 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
12.1261 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
12.13 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
12.1261 €

Connecting line, 771-9973/206-804, WAGO

WINSTA MIDI Connecting line 3-pole allows fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it guarantees error-free, time-saving installation and offers customization for meeting various installation requirements.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.

Features

  • Pluggable installation connector with protection against mismating
  • With S coding for use in components such as motors or frequency converters
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) plug, 3 pole
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 8 m
Coding S
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
