771-9973/207-601 | WAGO

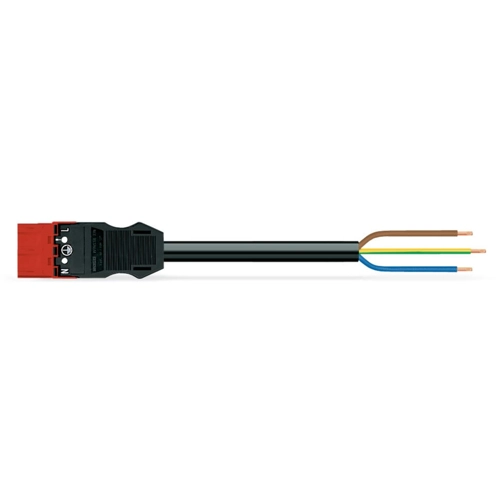

Connection line, 6 m, plug, 3 pole straight to open end, 2.5 mm², 771-9973/207-601
Connecting line, 771-9973/207-601, WAGO
The WINSTA MIDI Connecting line P coding supports fast, reliable installation. This pluggable installation connector with spring pressure connection technology work without screw connections. It allows fast, efficient, error-free installation in a large number of possible uses. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The cable is pre-assembled with a plug and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Effective protection against mismating
- For automation controllers
- With P coding for uninterruptible power supply
- Ready to install and use immediately
- Convenient installation and commissioning
| Connection (1) | plug, 3 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 6 m | |
| Coding | P | |
| Cable cross-section | 2.5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
