771-9973/207-701 | WAGO

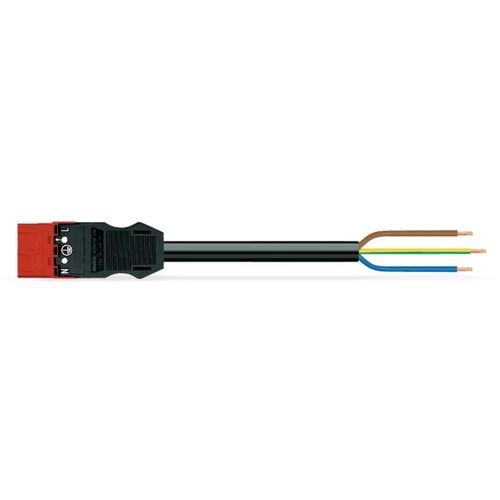

Connection line, 7 m, plug, 3 pole straight to open end, 2.5 mm², 771-9973/207-701
Unit Price (€ / pc.)
18.0523 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Connecting line, 771-9973/207-701, WAGO
The WINSTA MIDI Connecting line 3-pole provides the foundation for assembly of solid and fine-stranded conductors. This pluggable installation connector is useful when criteria repeat or is distributed on a specified pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.
The cable is pre-assembled with a plug and a free end. WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably.
Features
- Effective protection against mismating
- For automation controllers
- For UPS applications
- Convenient installation and commissioning
Technical specifications
| Connection (1) | plug, 3 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 7 m | |
| Coding | P | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
