771-9985/117-102 | WAGO

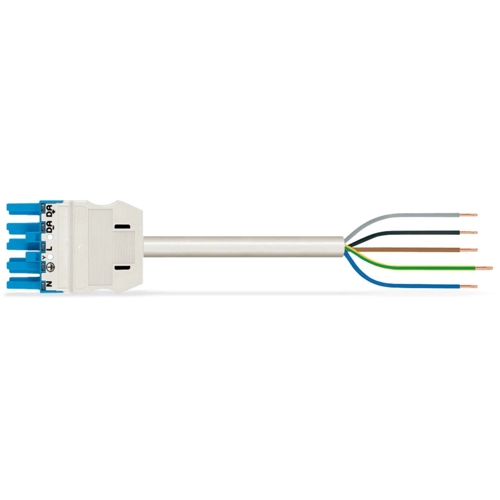

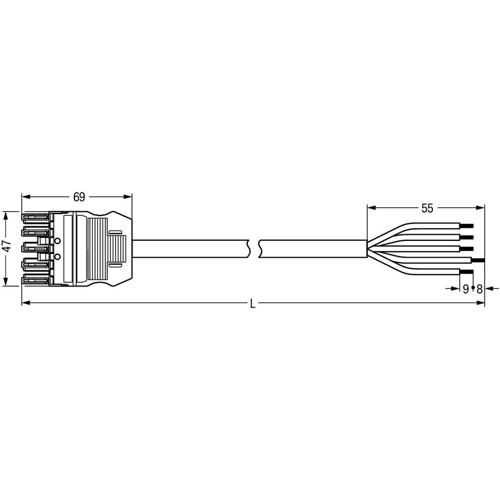

Connection cable, 1 m, socket, 5 pole straight to open end, 2.5 mm², 771-9985/117-102
Connecting line, 771-9985/117-102, WAGO
The WINSTA MIDI Connecting line with protection against mismating. The pluggable installation connector with spring pressure connection technology function entirely without screw connections. It allows resource-efficient, error-free installation in a large number of possible uses. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With I coding for lighting control (DALI standard)
- Exact dimensions
- Rapid, structured electrical installation
| Anschluss (1) | Buchse, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 1 m | |
| Kodierung | I | |
| Leiterquerschnitt | 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
