771-9985/117-301 | WAGO

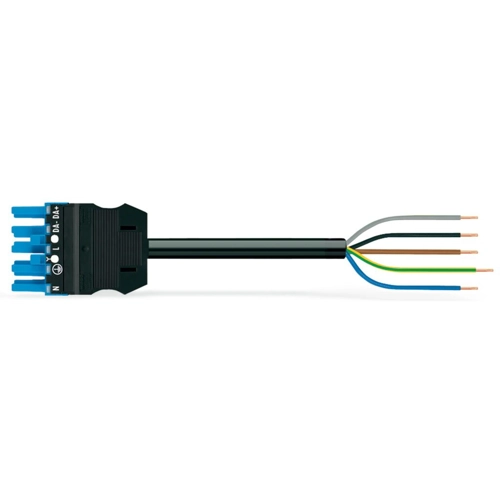

Connection line, 3 m, socket, 5 pole straight to open end, 2.5 mm², 771-9985/117-301
Unit Price (€ / pc.)
25.2756 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connecting line, 771-9985/117-301, WAGO
The WINSTA MIDI Connecting line I coding. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to make connections according to an enormous variety of requirements in seconds. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The Connecting line is equipped with a socket and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- With I coding for lighting control (DALI standard)
- Flexible installation to save space
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | socket, 5 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 3 m | |
| Coding | I | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
