771-9993/106-107 | WAGO

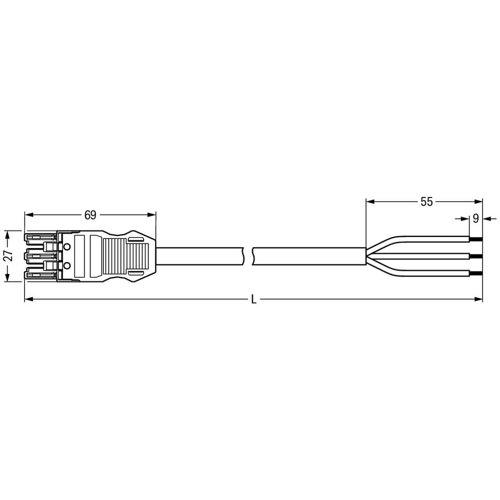

Connection line, 1 m, socket, 3 pole straight to open end, 1.5 mm², 771-9993/106-107
Unit Price (€ / pc.)
7.5089 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-9993/106-107, WAGO
The WINSTA MIDI Connecting line with protection type IP20. This pluggable installation connector with spring pressure connection technology work without screw connections. It allows flexible, error-free installation in numerous possible uses. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- For any mains application
- With B coding for controllers such as lighting fixtures and sun blinds
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket, 3 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 1 m | |
| Coding | B | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
