771-9994/005-203 | WAGO

Connecting line, 2 m, socket, 4 pole straight to plug, 4 pole straight, 1.0 mm², 771-9994/005-203

Order No.: 45P5926
EAN: 4055143566490
MPN:
771-9994/005-203
Series: 771
WAGO

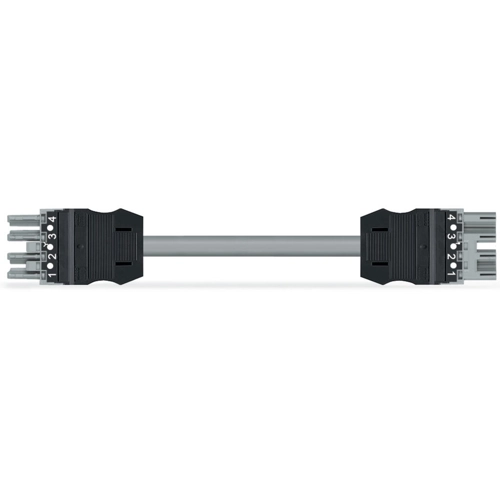

771-9994/005-203 WAGO Pre-assembled Connector Systems Image 1
771-9994/005-203 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
21.2058 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
21.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
21.2058 €

Connecting line, 771-9994/005-203, WAGO

WINSTA MIDI Connecting line rated current 10 A. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Thanks to the included test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and expense.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Now you can also reduce installation expenses without compromising quality and safety: with protection against mismating eliminates the need for servicing and prevents unnecessary downtime.

Features

  • Protection against mismating eliminates errors
  • With B coding for controllers, for example sun blinds and lighting fixtures
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) socket, 4 pole
Connection (2) plug, 4 pole
Version connecting line
Connection 1 design straight
Connection 2 design straight
Cable length 2 m
Coding B
Cable cross-section 1.0 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
