771-9994/006-102 | WAGO

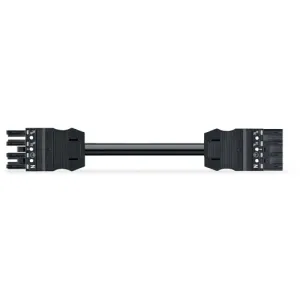

Connecting line, 1 m, socket, 4 pole straight to plug, 4 pole straight, 1.5 mm², 771-9994/006-102
Unit Price (€ / pc.)
15.0178 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connecting line, 771-9994/006-102, WAGO
Connecting line WINSTA MIDI rated current 16 A allows resource-efficient, error-free installation in numerous possible uses. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The Connecting line is provided with a socket and a plug. WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Protection against mismating eliminates errors
- With A coding for a great number of uses
- Ready for immediate use
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket, 4 pole | |
| Connection (2) | plug, 4 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 1 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
