771-9994/105-405 | WAGO

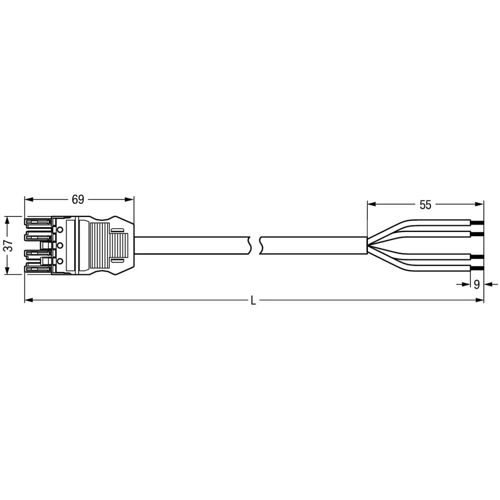

Connection line, 4 m, socket, 4 pole straight to open end, 1.0 mm², 771-9994/105-405
Connecting line, 771-9994/105-405, WAGO
The WINSTA MIDI Connecting line B coding provides the foundation for assembly of fine-stranded and solid conductors. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to make connections according to many different requirements in next to no time. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The cable is pre-assembled with a socket and a free end. The WINSTA Pluggable Connection System is perfectly tailored to the strict requirements of building installation. It makes electrical installation pluggable, and thus faster, more reliable, and error-free. Use of this pre-assembled system decreases time spent on assembly and installation errors at the construction site.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With B coding for use in process automation, such as lighting technology, for instance
- Rapid, structured electrical installation
| Connection (1) | socket, 4 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 4 m | |
| Coding | B | |
| Cable cross-section | 1.0 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
