771-9994/205-305 | WAGO

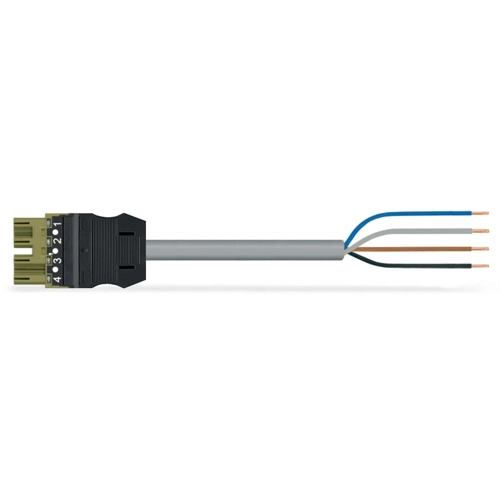

Connection line, 3 m, plug, 4 pole straight to open end, 1.0 mm², 771-9994/205-305
Unit Price (€ / pc.)
16.779 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Connecting line, 771-9994/205-305, WAGO
WINSTA MIDI Connecting line with color coding and mechanical coding of the pluggable installation connector ensures error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Thanks to the built-in test slot, it is possible to check connections even when they are plugged in.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- For automation controllers
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | plug, 4 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 3 m | |
| Coding | B | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
