771-9994/205-503 | WAGO

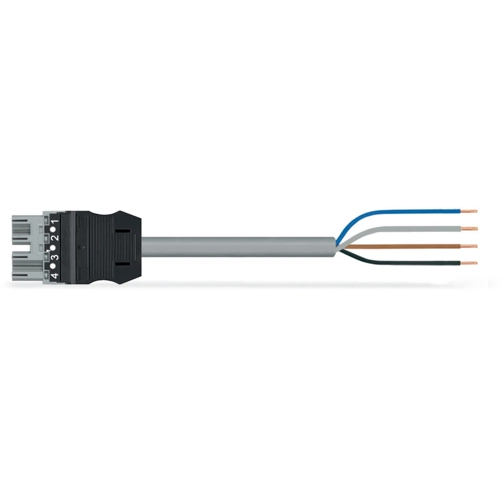

Connection line, 5 m, plug, 4 pole straight to open end, 1.0 mm², 771-9994/205-503
Unit Price (€ / pc.)
19.7183 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Connecting line, 771-9994/205-503, WAGO
The WINSTA MIDI Connecting line B coding allows installation of fine-stranded and solid conductors. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it ensures time-saving, error-free installation and offers flexibility for meeting an enormous variety of installation requirements.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- With B coding for use in process automation, such as lighting technology
- Fast, secure installation
Technical specifications
| Connection (1) | plug, 4 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 5 m | |
| Coding | B | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
