771-9995/116-401 | WAGO

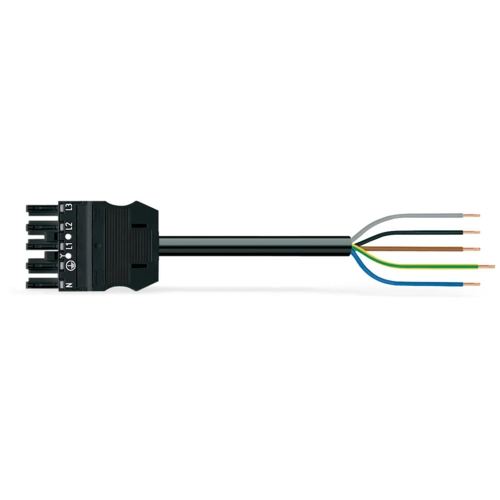

Connection line, 4 m, socket, 5 pole straight to open end, 1.5 mm², 771-9995/116-401
Unit Price (€ / pc.)
24.5616 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Connecting line, 771-9995/116-401, WAGO
The WINSTA MIDI Connecting line rated current 16 A allows installation of solid and fine-stranded conductors. This pluggable installation connector is useful when requirements repeat or is distributed on a specified pattern, for example for installing grid lighting or flush-mount lighting. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- Suitable for any application
- Flexible installation to save space
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | socket, 5 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 4 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
