771-9995/117-601 | WAGO

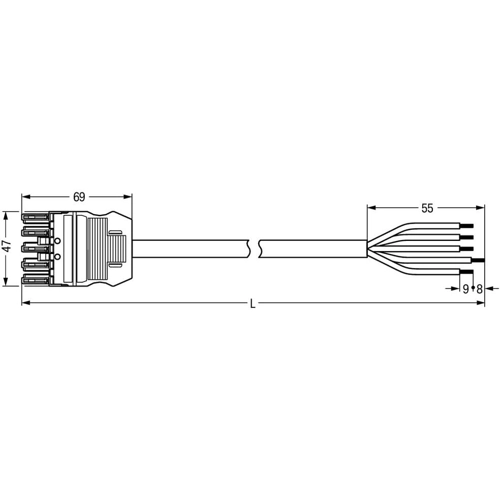

Connection cable, 6 m, socket, 5 pole straight to open end, 2.5 mm², 771-9995/117-601
Unit Price (€ / pc.)
38.9963 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-9995/117-601, WAGO
The WINSTA MIDI Connecting line A coding supports rapid, correct installation. This pluggable installation connector with spring pressure connection technology work without screw connections. It allows resource-efficient, error-free installation in a large number of possible uses. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- For automation controllers
- For any mains application
- Exact dimensions
- Quick replacement of defective units during ongoing operation
Technical specifications
| Anschluss (1) | Buchse, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 6 m | |
| Kodierung | A | |
| Leiterquerschnitt | 2,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
