771-9995/206-502 | WAGO

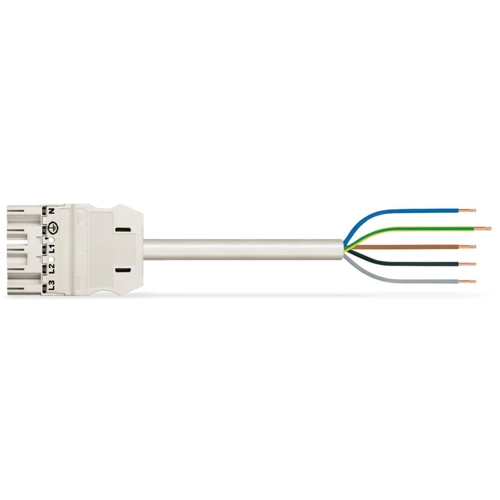

Connection line, 5 m, plug, 5 pole straight to open end, 1.5 mm², 771-9995/206-502
Unit Price (€ / pc.)
18.4212 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Connecting line, 771-9995/206-502, WAGO
The WINSTA MIDI Connecting line A coding supports rapid, correct installation. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product meets all the mandatory safety requirements of fire class E; as a result it can be used in domains where fire safety is relevant.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- With A coding for use in many general mains applications
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | plug, 5 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 5 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
