774-5001/102-000 | WAGO

Y cable, 0.4 m, Socket/Socket straight to plug/socket straight, 1.5 mm², 2.5 mm², 774-5001/102-000

Order No.: 44P8702
EAN: 4066966302264
MPN:
774-5001/102-000
Series: 774
WAGO

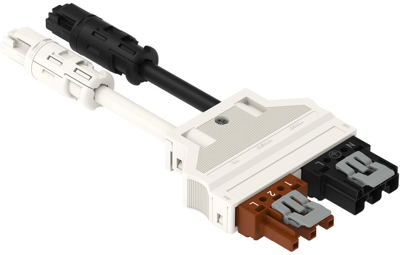

774-5001/102-000 WAGO Pre-assembled Connector Systems Image 1

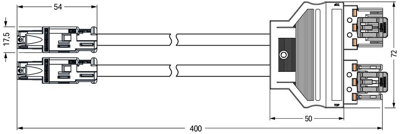

774-5001/102-000 WAGO Pre-assembled Connector Systems Image 2

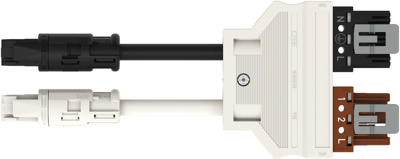

774-5001/102-000 WAGO Pre-assembled Connector Systems Image 3
Image may differ
Unit Price (€ / pc.)
38.6512 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
38.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
38.6512 €

Pre-assembled Y-cable, 774-5001/102-000, WAGO

This Connecting line is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. The pluggable installation connector with spring pressure connection technology works without screw. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.

Features

  • Saves time, since no wiring is required at the construction site
  • With A coding for a great number of applications
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) Socket/Socket
Connection (2) plug/socket
Version Y cable
Connection 1 design straight
Connection 2 design straight
Cable length 0.4 m
Cable cross-section 1.5 mm², 2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
