774-5001/104-000 | WAGO

Y cable, 0.4 m, Socket/Socket straight to plug/socket straight, 1.5 mm², 774-5001/104-000

Order No.: 44P8699
EAN: 4066966302486
MPN:
774-5001/104-000
Series: 774
WAGO

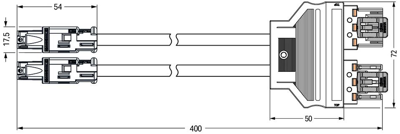

774-5001/104-000 WAGO Pre-assembled Connector Systems Image 1

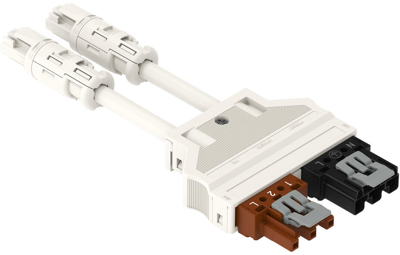

774-5001/104-000 WAGO Pre-assembled Connector Systems Image 2
774-5001/104-000 WAGO Pre-assembled Connector Systems Image 3
Image may differ
Unit Price (€ / pc.)
37.7825 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
37.7825 €

Pre-assembled Y-cable, 774-5001/104-000, WAGO

This Connecting line whether on PCBs, in control cabinets or for connecting lights - pluggable installation connectors allows you to make connections according to many different requirements in no time flat. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

Features

  • With A coding for a great number of uses
  • Guarantees safe use
  • Convenient installation and commissioning
Technical specifications
Connection (1) Socket/Socket
Connection (2) plug/socket
Version Y cable
Connection 1 design straight
Connection 2 design straight
Cable length 0.4 m
Coding A
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
