774-9293/117-101 | WAGO

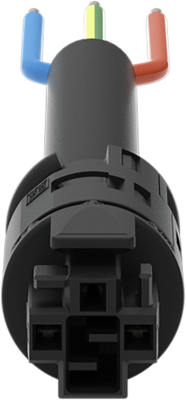

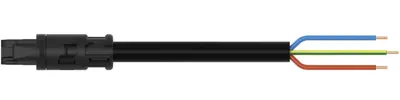

Connection line, 1 m, socket straight to open end, 2.5 mm², 774-9293/117-101
Connection cable, 774-9293/117-101, WAGO
This Connecting line is the pluggable solution for your application in control cabinets, on PCBs or for lighting connections. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
This product has a current rating of 20 A - so it is also suitable for high power loads. This product features a round design that is perfect for use in conduits with an inner diameter of 20 mm, for example in construction of prefabricated houses. Eliminating halogens as an additive in the production of this Connecting line noticeably improves fire safety and minimises environmental pollution.
Features
- Saves time, since no wiring is required at the construction site
- For any mains application
- Quick replacement of defective units during ongoing operation
| Connection (1) | socket | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 1 m | |
| Cable cross-section | 2.5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
