774-9293/117-401 | WAGO
Connection line, 4 m, socket straight to open end, 2.5 mm², 774-9293/117-401
Unit Price (€ / pc.)
32.5941 € *
Available: 0 pcs.
Leadtime: On Request **

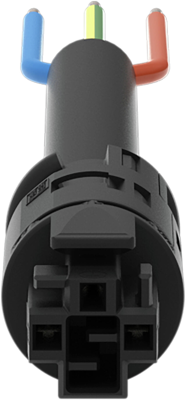

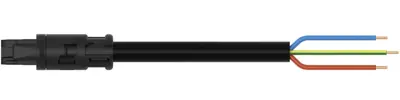

Connection cable, 774-9293/117-401, WAGO
This Connecting line with protection against mismating provides the foundation for installation of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.
This pluggable installation connector is designed for a load of up to 20 A. Therefore, it can also be used for high power loads. Not using halogen additives in the manufacture of this Connecting line substantially increases fire safety and reduces environmental pollution.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for use in many general mains applications
- Fast, secure installation

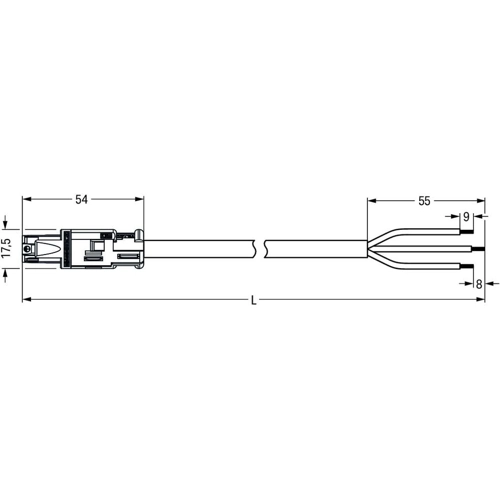

Technical specifications
| Connection (1) | socket | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 4 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
