774-9293/117-501 | WAGO
Connection line, 5 m, socket straight to open end, 2.5 mm², 774-9293/117-501
Unit Price (€ / pc.)
38.0324 € *
Available: 0 pcs.
Leadtime: On Request **

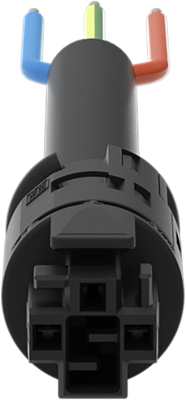

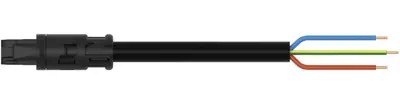

Connection cable, 774-9293/117-501, WAGO
Connecting line for signal and power transmission. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
This product has a current rating of 20 A - so it is also suitable for powerful loads. The Connecting line is halogen-free. This eliminates the addition of environmental pollutants during production. It also achieves a higher fire class, since halogen-free materials do not easily ignite.
Features
- Rapid, structured electrical installation
- With A coding for a great number of uses
- Flexible installation to save space
Technical specifications
| Connection (1) | socket | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 5 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
