774-9293/1517-301 | WAGO
Adapter cable, 3 m, socket straight to plug MIDI straight, 2.5 mm², 774-9293/1517-301
Unit Price (€ / pc.)
31.0114 € *
Available: 0 pcs.
Leadtime: On Request **

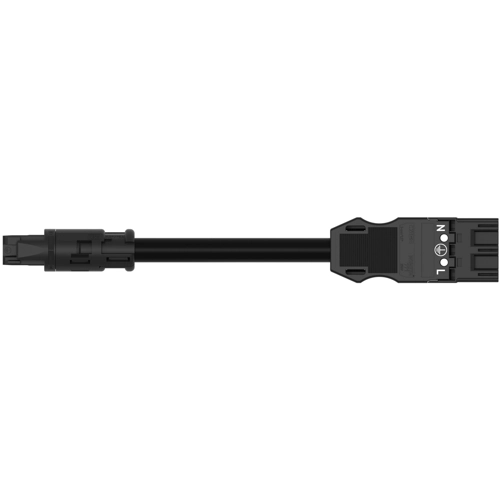

Pre-assembled adapter cable, 774-9293/1517-301, WAGO
This Connecting line is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
This pluggable installation connector is used for electrical currents up to 20 A. Thus the product is also suitable for high power loads. The Connecting line is halogen-free. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials are flame-resistant.
Features
- Suitable for any application
- Guarantees safe use
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug MIDI | |
| Version | adapter cable | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 3 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
