774-9293/217-801 | WAGO

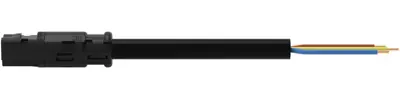

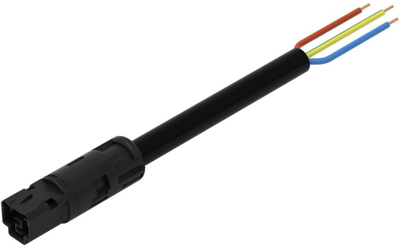

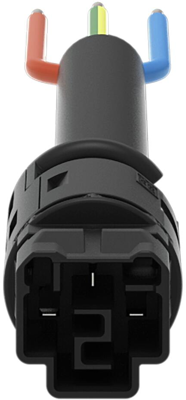

Connection line, 8 m, plug straight to open end, 2.5 mm², 774-9293/217-801
Connection cable, 774-9293/217-801, WAGO
This Connecting line is the pluggable solution for your use in control cabinets, for lighting connections or on PCBs. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
This pluggable installation connector can be used for a load of up to 20 A. Therefore, it can also be used for high power loads. This product meets the strict safety standards of fire class B2. The Connecting line is halogen-free. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials do not easily ignite.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a great number of uses
- Quick replacement of defective units during ongoing operation
| Connection (1) | plug | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 8 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
