774-9393/1567-701 | WAGO

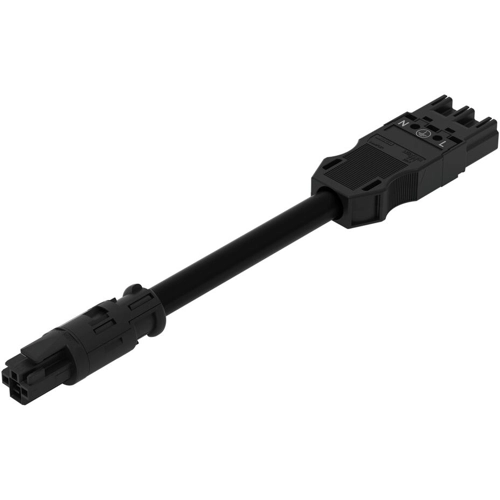

Adapter cable, 7 m, socket straight to plug MIDI straight, 2.5 mm², 774-9393/1567-701
Unit Price (€ / pc.)
51.7531 € *
Available: 0 pcs.
Leadtime: On Request **
Pre-assembled adapter cable, 774-9393/1567-701, WAGO
This Connecting line provides the foundation for assembly of solid and fine-stranded conductors. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This pluggable installation connector can be employed for a load of up to 20 A. Thus, it can also be used for high power loads. It fits into drill holes and conduits with diameters up to 20 mm.
Features
- Suitable for any application
- Guarantees safe use
- Fast, secure installation
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug MIDI | |
| Version | adapter cable | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 7 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
