774-9973/006-305 | WAGO
Connecting line, 3 m, socket straight to plug straight, 1.5 mm², 774-9973/006-305
Unit Price (€ / pc.)
15.5652 € *
Available: 0 pcs.
Leadtime: On Request **

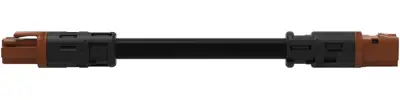

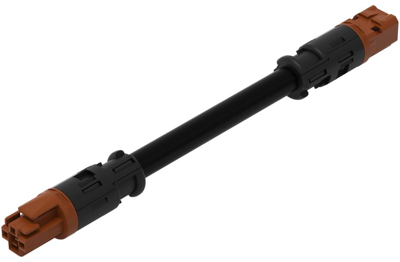

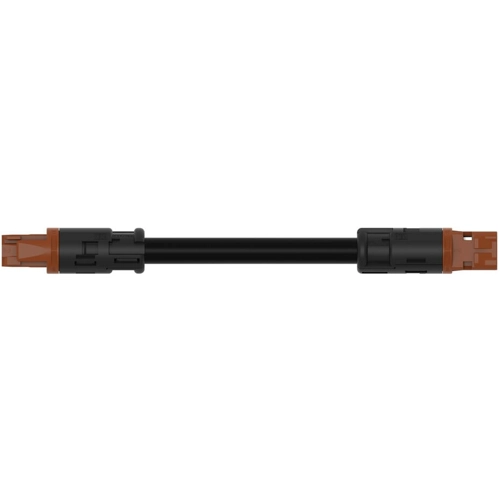

Pre-assembled interconnecting cable, 774-9973/006-305, WAGO
This Connecting line provides the foundation for assembly of solid and fine-stranded conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
Features
- With S coding for use in components such as motors or frequency converters
- Guarantees safe use
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 3 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
