Connecting line, 5 m, socket straight to plug straight, 1.5 mm², 774-9973/016-505
Unit Price (€ / pc.)
22.491 € *
Available: 0 pcs.
Leadtime: On Request **

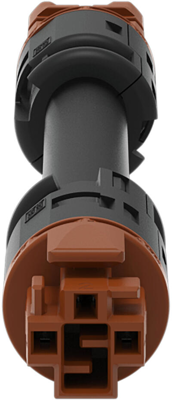

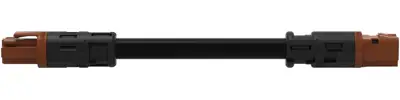

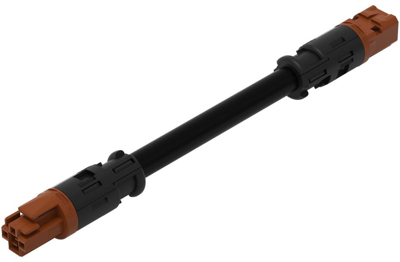

Pre-assembled interconnecting cable, 774-9973/016-505, WAGO
This Connecting line 3-pole provides the foundation for installation of fine-stranded and solid conductors. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. It fits perfectly into conduits or boreholes due to its design.
Features
- Saves time, since no wiring is required at the construction site
- With S coding for AC applications of distributed components
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 5 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
