774-9973/016-605 | WAGO
Connecting line, 6 m, socket straight to plug straight, 1.5 mm², 774-9973/016-605
Unit Price (€ / pc.)
24.4664 € *
Available: 0 pcs.
Leadtime: On Request **

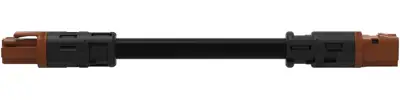

Pre-assembled interconnecting cable, 774-9973/016-605, WAGO
This Connecting line with locking latch has coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. It offers a round design that is ideal for use in conduits with an inner diameter of 20 mm, for example in construction of prefabricated houses. The Connecting line is free of halogen.
Features
- Saves time, since no wiring is required at the construction site
- With S coding for use in components such as motors or frequency converters
- Ready for immediate use
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 6 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
