774-9973/016-805 | WAGO
Connecting line, 8 m, socket straight to plug straight, 1.5 mm², 774-9973/016-805
Unit Price (€ / pc.)
28.5362 € *
Available: 0 pcs.
Leadtime: On Request **

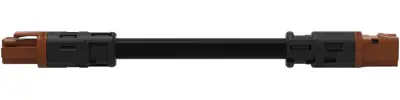

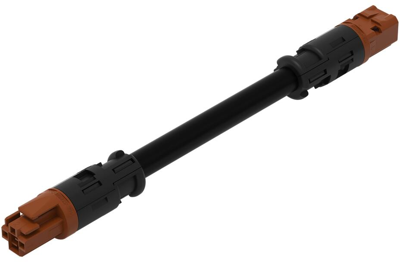

Pre-assembled interconnecting cable, 774-9973/016-805, WAGO
Connecting line with locking latch for power and signal transmission. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. It fits optimally into conduits or boreholes thanks to its design. The Connecting line is halogen-free.
Features
- With S coding for AC applications of distributed components
- Ready to install and use immediately
- Convenient installation and commissioning

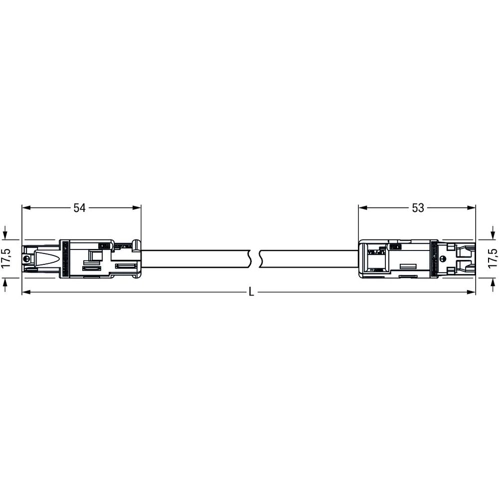

Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 8 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
