774-9973/106-505 | WAGO

Connection line, 5 m, socket straight to open end, 1.5 mm², 774-9973/106-505

Order No.: 44P8394
EAN: 4055143319041
MPN:
774-9973/106-505
Series: 774
WAGO

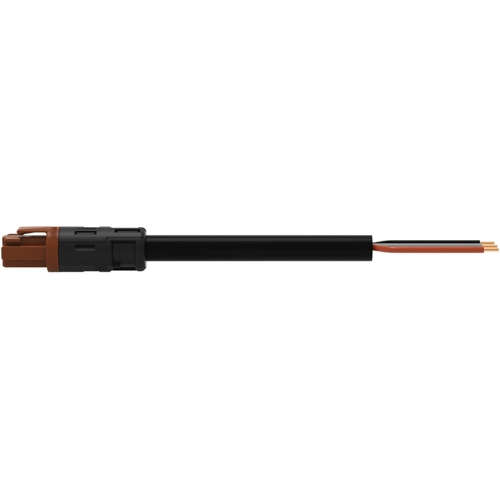

774-9973/106-505 WAGO Pre-assembled Connector Systems Image 1
774-9973/106-505 WAGO Pre-assembled Connector Systems Image 2
774-9973/106-505 WAGO Pre-assembled Connector Systems Image 3
774-9973/106-505 WAGO Pre-assembled Connector Systems Image 4
774-9973/106-505 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
14.3752 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.3752 €

Connection cable, 774-9973/106-505, WAGO

This Connecting line S coding provides the foundation for assembly of fine-stranded and solid conductors. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. It fits optimally into conduits or boreholes due to its design.

Features

  • With S coding for use in components such as motors or frequency converters
  • Ready to install and use immediately
  • Convenient installation and commissioning
Technical specifications
Connection (1) socket
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 5 m
Coding S
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
