774-9973/116-105 | WAGO
Connection line, 1 m, socket straight to open end, 1.5 mm², 774-9973/116-105
Unit Price (€ / pc.)
10.7933 € *
Available: 0 pcs.
Leadtime: On Request **

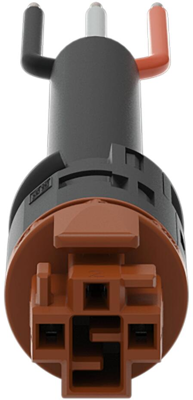

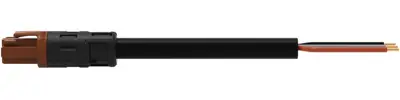

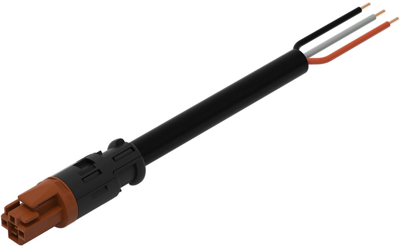

Connection cable, 774-9973/116-105, WAGO
Connecting line for signal and power transmission. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
This product is suitable for drill holes and conduits with diameters up to 20 mm. This product meets all the relevant fire protection requirements of fire class E; therefore it can be used in areas where fire safety is relevant.
Features
- Saves time, since no wiring is required at the construction site
- With S coding for use in components such as motors or frequency converters
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 1 m | |
| Coding | S | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
