774-9973/116-405 | WAGO

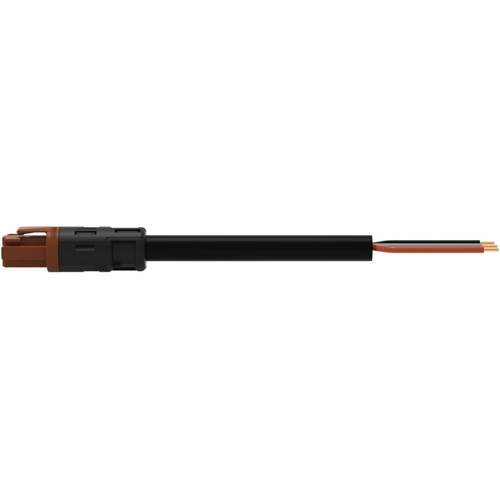

Connection line, 4 m, socket straight to open end, 1.5 mm², 774-9973/116-405

Order No.: 44P8385
EAN: 4055143522595
MPN:
774-9973/116-405
Series: 774
WAGO
774-9973/116-405 WAGO Pre-assembled Connector Systems Image 1
774-9973/116-405 WAGO Pre-assembled Connector Systems Image 2
774-9973/116-405 WAGO Pre-assembled Connector Systems Image 3
774-9973/116-405 WAGO Pre-assembled Connector Systems Image 4
774-9973/116-405 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
16.7314 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.7314 €

Connection cable, 774-9973/116-405, WAGO

Connecting line for signal and power transmission. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This product fits perfectly into boreholes or conduits due to its design. The Connecting line is free of halogen. This eliminates the addition of environmental pollutants during production. It also achieves a higher fire class, since halogen-free materials are flame-resistant.

Features

  • Flexible installation to save space
  • For AC applications
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) socket
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 4 m
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
