774-9973/206-305 | WAGO
Connection line, 3 m, plug straight to open end, 1.5 mm², 774-9973/206-305
Unit Price (€ / pc.)
11.7691 € *
Available: 0 pcs.
Leadtime: On Request **

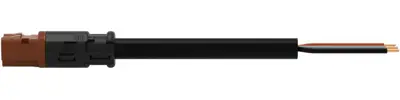

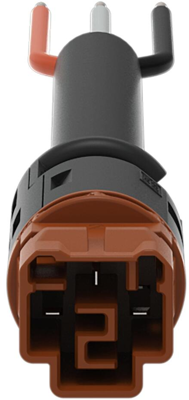

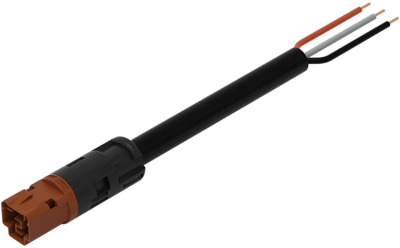

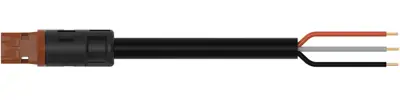

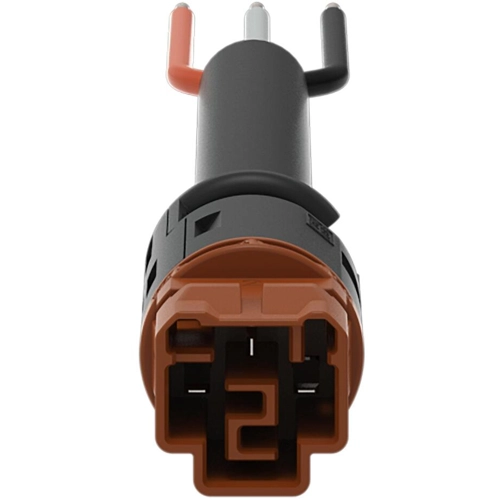

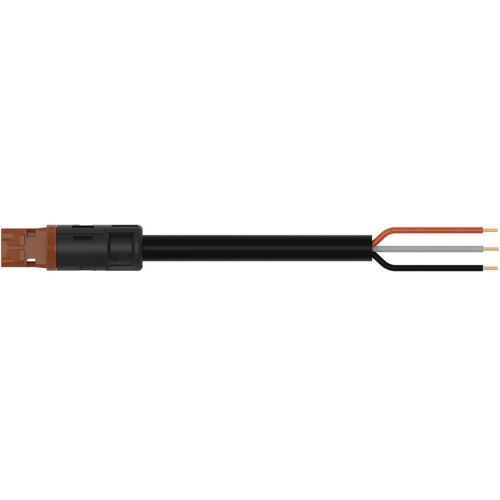

Connection cable, 774-9973/206-305, WAGO
Connecting line for power and signal transmission. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
This product offers a round design that is ideal for installation in conduits with an inner diameter of 20 mm, for example in construction of prefabricated houses. This product meets all the relevant safety requirements of fire class E; therefore it can be used in domains where fire safety is relevant.
Features
- With S coding for use in components such as motors or frequency converters
- Guarantees safe use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | plug | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 3 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
