774-9973/206-505 | WAGO

Connection line, 5 m, plug straight to open end, 1.5 mm², 774-9973/206-505

Order No.: 44P8497
EAN: 4055143319188
MPN:
774-9973/206-505
Series: 774
WAGO

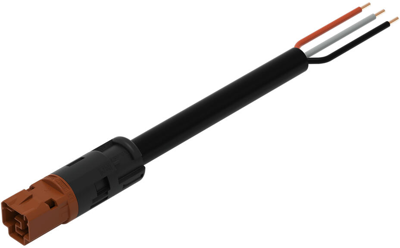

774-9973/206-505 WAGO Pre-assembled Connector Systems Image 1

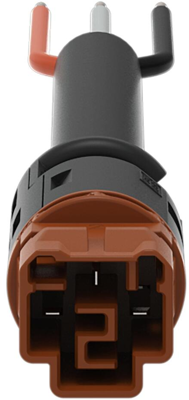

774-9973/206-505 WAGO Pre-assembled Connector Systems Image 2

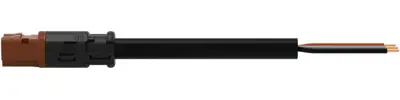

774-9973/206-505 WAGO Pre-assembled Connector Systems Image 3

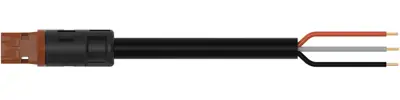

774-9973/206-505 WAGO Pre-assembled Connector Systems Image 4

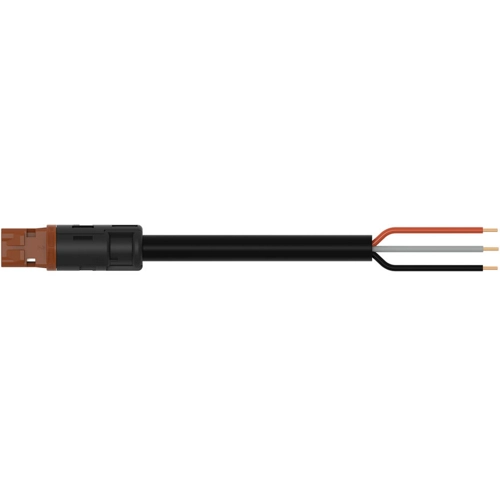

774-9973/206-505 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
14.3752 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
14.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
14.3752 €

Connection cable, 774-9973/206-505, WAGO

Connecting line with mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.

This product offers a round design that is ideal for installation in conduits with an inner diameter of 20 mm, such as in the prefabricated house sector. This product meets all the relevant fire protection requirements of fire class E; thus it can be used in domains where fire safety is relevant.

Features

  • With S coding for AC applications of distributed components
  • Guarantees safe use
  • Convenient installation and commissioning
Technical specifications
Connection (1) plug
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 5 m
Coding S
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
