774-9973/216-105 | WAGO

Connection line, 1 m, plug straight to open end, 1.5 mm², 774-9973/216-105

Order No.: 44P8485
EAN: 4050821578062
MPN:
774-9973/216-105
Series: 774
WAGO

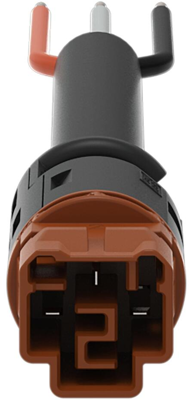

774-9973/216-105 WAGO Pre-assembled Connector Systems Image 1

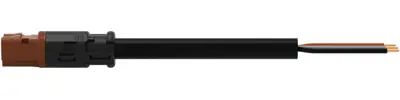

774-9973/216-105 WAGO Pre-assembled Connector Systems Image 2

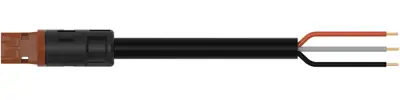

774-9973/216-105 WAGO Pre-assembled Connector Systems Image 3

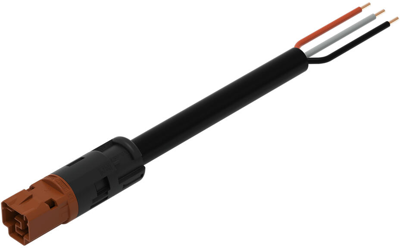

774-9973/216-105 WAGO Pre-assembled Connector Systems Image 4

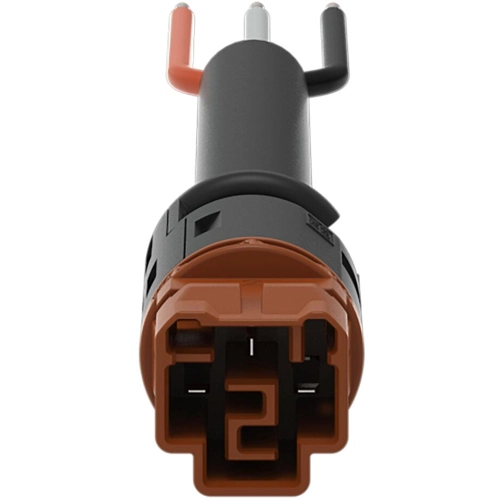

774-9973/216-105 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
10.7933 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.79 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.7933 €

Connection cable, 774-9973/216-105, WAGO

This Connecting line is the pluggable solution for your application in control cabinets, on PCBs or for lighting connections. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. It features a round design that is very good for use in conduits with an inner diameter of 20 mm, such as in construction of prefabricated houses.

Features

  • With S coding for AC applications of distributed components
  • Guarantees safe use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) plug
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 1 m
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
