774-9973/216-805 | WAGO

Connection line, 8 m, plug straight to open end, 1.5 mm², 774-9973/216-805

Order No.: 44P8492
EAN: 4055143522694
MPN:
774-9973/216-805
Series: 774
WAGO

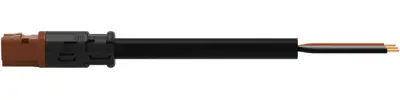

774-9973/216-805 WAGO Pre-assembled Connector Systems Image 1

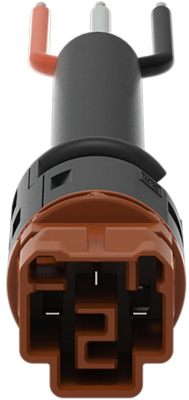

774-9973/216-805 WAGO Pre-assembled Connector Systems Image 2

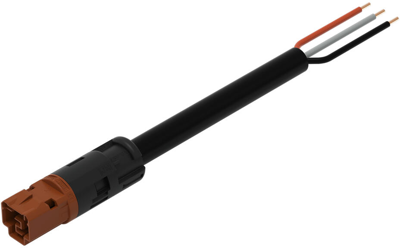

774-9973/216-805 WAGO Pre-assembled Connector Systems Image 3
774-9973/216-805 WAGO Pre-assembled Connector Systems Image 4
774-9973/216-805 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
24.6092 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
24.6092 €

Connection cable, 774-9973/216-805, WAGO

This Connecting line S coding supports rapid, correct installation. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This product offers a round design that is ideal for use in conduits with an inner diameter of 20 mm, such as in construction of prefabricated houses. The required safety requirements in connection with EU CPR are fully satisfied by this product through fire class E. The Connecting line is halogen-free. This eliminates the addition of environmental pollutants during production. It also achieves a higher fire class, since halogen-free materials are flame-resistant.

Features

  • For AC applications
  • Guarantees safe use
  • Convenient installation and commissioning
Technical specifications
Connection (1) plug
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 8 m
Coding S
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
