774-9993/007-302 | WAGO

Connecting line, 3 m, socket straight to plug straight, 2.5 mm², 774-9993/007-302

Order No.: 44P8617
EAN: 4045454320690
MPN:
774-9993/007-302
Series: 774
WAGO

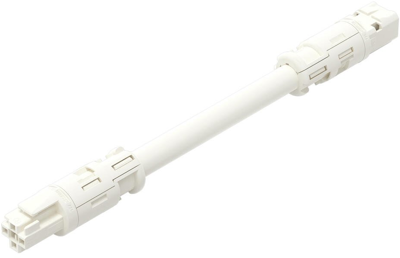

774-9993/007-302 WAGO Pre-assembled Connector Systems Image 1

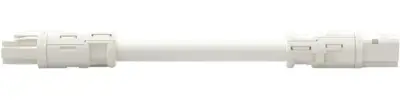

774-9993/007-302 WAGO Pre-assembled Connector Systems Image 2

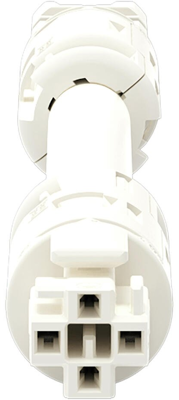

774-9993/007-302 WAGO Pre-assembled Connector Systems Image 3
774-9993/007-302 WAGO Pre-assembled Connector Systems Image 4
774-9993/007-302 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
18.9329 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
18.9329 €

Pre-assembled interconnecting cable, 774-9993/007-302, WAGO

This Connecting line supports fast, reliable installation. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector is designed for a load of up to 20 A. As a result, it can also be used for high power loads.

Features

  • Saves time, since no wiring is required at the construction site
  • With A coding for use in many general mains applications
  • Rapid, structured electrical installation
Technical specifications
Connection (1) socket
Connection (2) plug
Version connecting line
Connection 1 design straight
Connection 2 design straight
Cable length 3 m
Cable cross-section 2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
