774-9993/007-702 | WAGO
Connecting line, 7 m, socket straight to plug straight, 2.5 mm², 774-9993/007-702
Unit Price (€ / pc.)
28.5243 € *
Available: 0 pcs.
Leadtime: On Request **

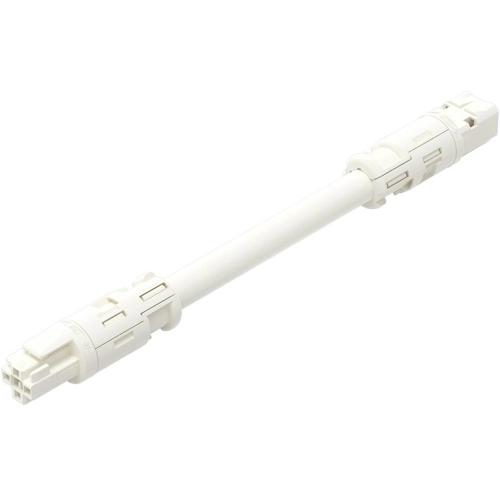

Pre-assembled interconnecting cable, 774-9993/007-702, WAGO
Connecting line for power and signal transmission. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This product has a current rating of 20 A - as a result it is also suitable for powerful loads. it fits like a glove into conduits or boreholes due to its design.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a great number of applications
- Ready to install and use immediately
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 7 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
