774-9993/007-802 | WAGO

Connecting line, 8 m, socket straight to plug straight, 2.5 mm², 774-9993/007-802

Order No.: 44P8627
EAN: 4045454320799
MPN:
774-9993/007-802
Series: 774
WAGO

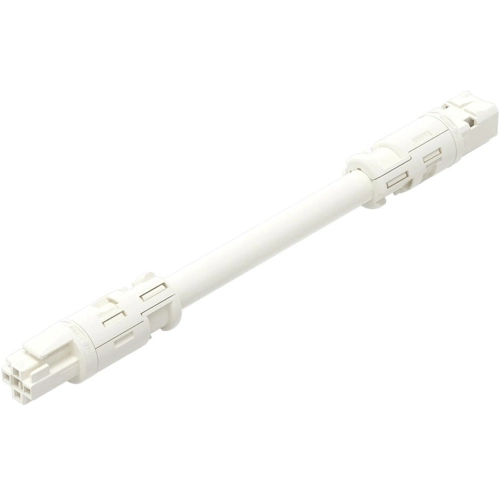

774-9993/007-802 WAGO Pre-assembled Connector Systems Image 1
774-9993/007-802 WAGO Pre-assembled Connector Systems Image 2
774-9993/007-802 WAGO Pre-assembled Connector Systems Image 3
774-9993/007-802 WAGO Pre-assembled Connector Systems Image 4
774-9993/007-802 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
30.9638 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
30.9638 €

Pre-assembled interconnecting cable, 774-9993/007-802, WAGO

This Connecting line allows installation of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This pluggable installation connector can be employed for a load of up to 20 A. As a result, it can also be used for high power loads. It is suitable for drill holes and conduits with diameters up to 20 mm.

Features

  • With A coding for a great number of applications
  • Guarantees safe use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) socket
Connection (2) plug
Version connecting line
Connection 1 design straight
Connection 2 design straight
Cable length 8 m
Cable cross-section 2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
