774-9993/017-702 | WAGO
Connecting line, 7 m, socket straight to plug straight, 2.5 mm², 774-9993/017-702
Unit Price (€ / pc.)
36.7115 € *
Available: 0 pcs.
Leadtime: On Request **

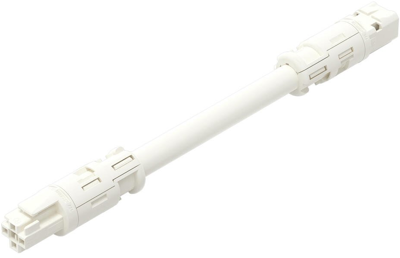

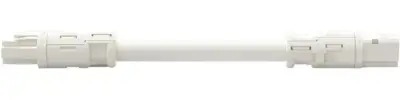

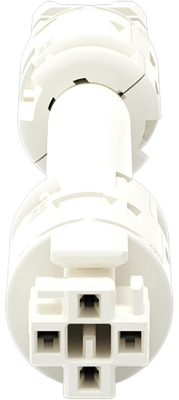

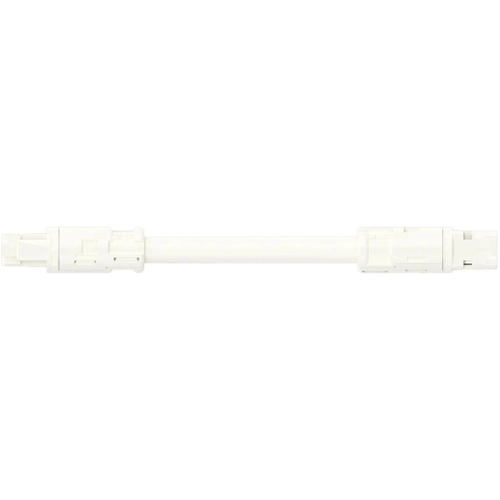

Pre-assembled interconnecting cable, 774-9993/017-702, WAGO
Connecting line A coding for signal and power transmission. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
This pluggable installation connector can be used for a load of up to 20 A. As a result, it can also be used for high power loads. This product meets all the mandatory fire protection requirements of fire class E; thus it can be used in domains where fire safety is relevant. The Connecting line is halogen-free.
Features
- With A coding for a large number of applications
- Ready for immediate use
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 7 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
