774-9993/107-702 | WAGO

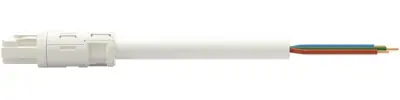

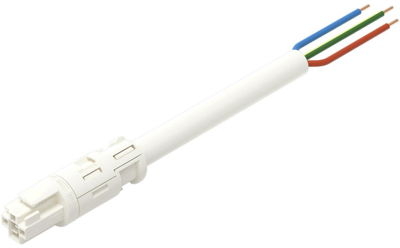

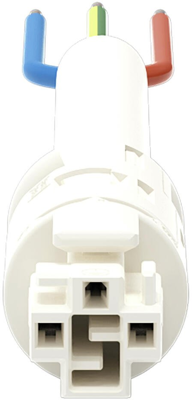

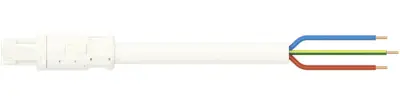

Connection line, 7 m, socket straight to open end, 2.5 mm², 774-9993/107-702
Unit Price (€ / pc.)
24.9305 € *
Available: 0 pcs.
Leadtime: On Request **
Connection cable, 774-9993/107-702, WAGO
This Connecting line is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
This pluggable installation connector is used for electrical currents up to 20 A. Thus the product is especially suitable for high power loads. It fits perfectly into boreholes or conduits thanks to its design. This product meets all the relevant fire protection requirements of fire class E; as a result it can be used in domains where fire safety is relevant.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a great number of applications
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | socket | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 7 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
