774-9993/117-601 | WAGO

Connection line, 6 m, socket straight to open end, 2.5 mm², 774-9993/117-601

Order No.: 44P8377
EAN: 4045454323318
MPN:
774-9993/117-601
Series: 774
WAGO

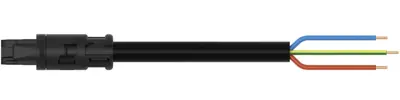

774-9993/117-601 WAGO Pre-assembled Connector Systems Image 1

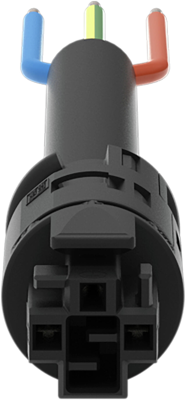

774-9993/117-601 WAGO Pre-assembled Connector Systems Image 2

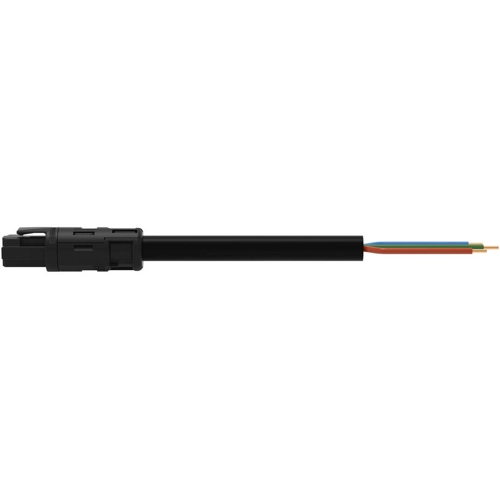

774-9993/117-601 WAGO Pre-assembled Connector Systems Image 3
774-9993/117-601 WAGO Pre-assembled Connector Systems Image 4
774-9993/117-601 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
29.9761 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
29.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
29.9761 €

Connection cable, 774-9993/117-601, WAGO

This Connecting line is the pluggable solution for your application in control cabinets, on PCBs or for lighting connections. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.

This pluggable installation connector is used for electrical currents up to 20 A. Thus the product is especially suitable for high power loads. It features a round design that is ideal for installation in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector.

Features

  • Saves time, since no wiring is required at the construction site
  • With A coding for a large number of uses
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) socket
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 6 m
Cable cross-section 2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
