774-9993/1507-301 | WAGO

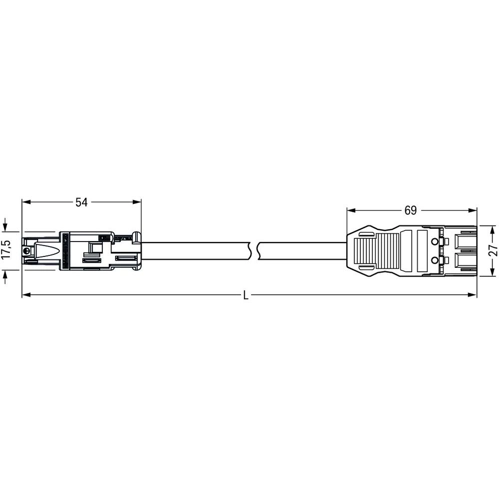

Adapter cable, 3 m, socket straight to plug MIDI straight, 2.5 mm², 774-9993/1507-301
Unit Price (€ / pc.)
17.1241 € *
Available: 0 pcs.
Leadtime: On Request **
Pre-assembled adapter cable, 774-9993/1507-301, WAGO
Connecting line for power and signal transmission. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This pluggable installation connector can be used for electrical currents up to 20 A. Thus the product is ideally suitable for high power loads. It offers a round design that is ideal for installation in conduits with an inner diameter of 20 mm, such as in construction of prefabricated houses.
Features
- Suitable for any application
- Guarantees safe use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug MIDI | |
| Version | adapter cable | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 3 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
