774-9993/206-502 | WAGO
Connection line, 5 m, plug straight to open end, 1.5 mm², 774-9993/206-502
Unit Price (€ / pc.)
13.9706 € *
Available: 0 pcs.
Leadtime: On Request **

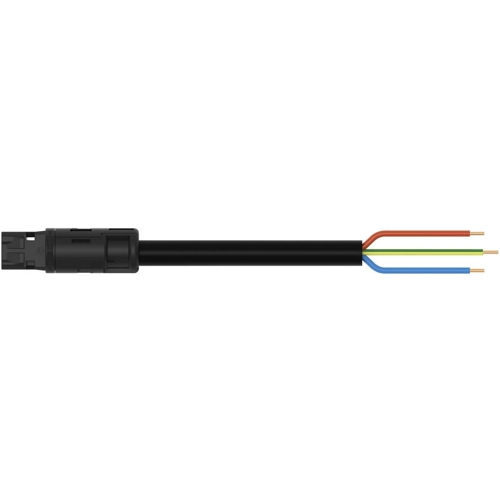

Connection cable, 774-9993/206-502, WAGO
This Connecting line allows installation of fine-stranded and solid conductors. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. This product fits like a glove into conduits or boreholes thanks to its design.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for use in a large number of general mains applications
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | plug | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 5 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
