774-9993/207-801 | WAGO

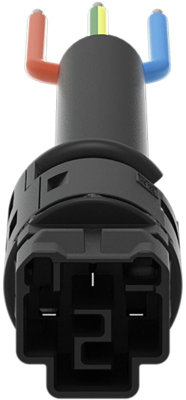

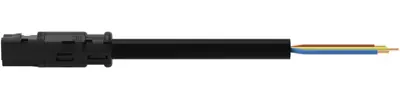

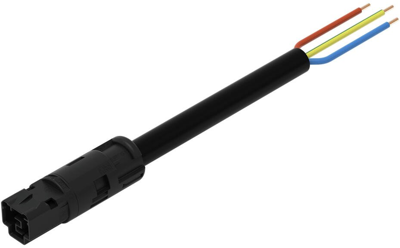

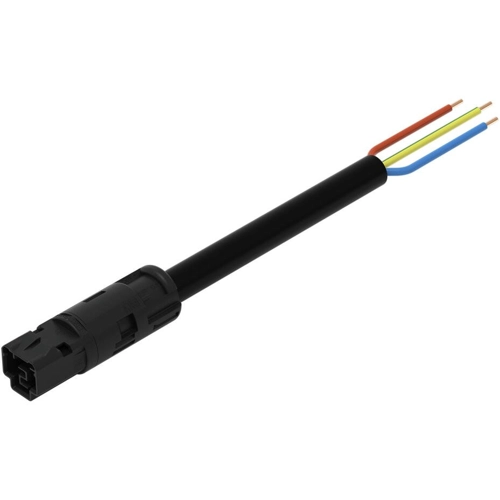

Connection line, 8 m, plug straight to open end, 2.5 mm², 774-9993/207-801
Unit Price (€ / pc.)
27.3343 € *
Available: 0 pcs.
Leadtime: On Request **
Connection cable, 774-9993/207-801, WAGO
Connecting line for signal and power transmission. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
This pluggable installation connector can be employed for a load of up to 20 A. Thus, it can also be used for high power loads. It is suitable for drill holes and conduits with diameters up to 20 mm. This product meets all the relevant safety requirements of fire class E; thus it can be used in domains where fire safety is relevant.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for use in a large number of general mains applications
- Ready for immediate use
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | plug | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 8 m | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
