774-9993/217-501 | WAGO

Connection line, 5 m, plug straight to open end, 2.5 mm², 774-9993/217-501

Order No.: 44P8477
EAN: 4045454324841
MPN:
774-9993/217-501
Series: 774
WAGO

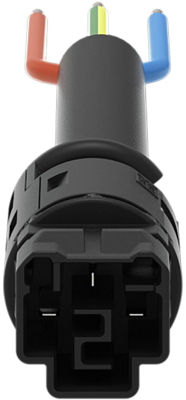

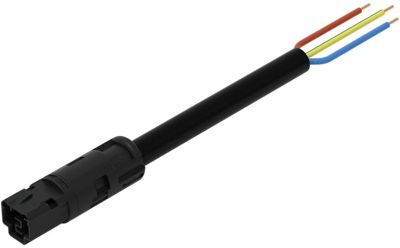

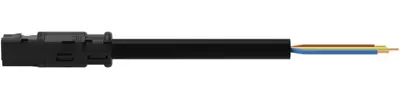

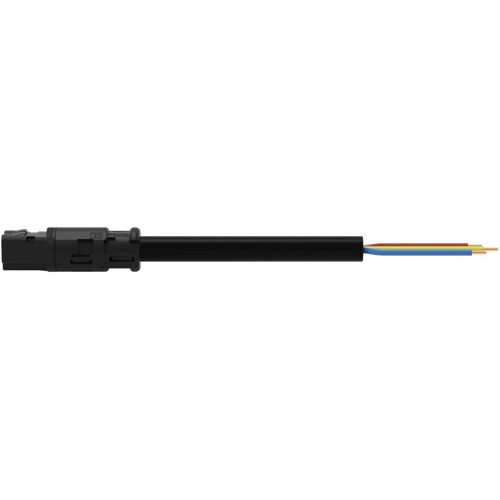

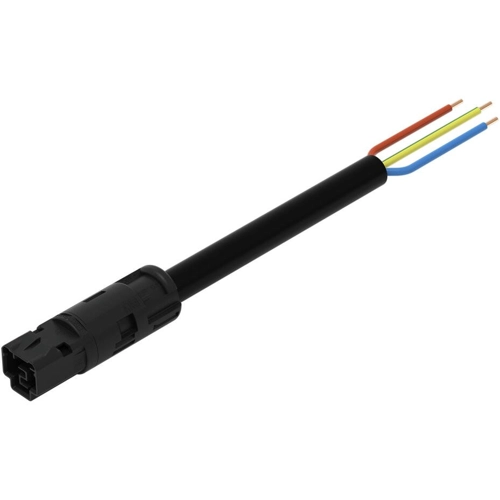

774-9993/217-501 WAGO Pre-assembled Connector Systems Image 1
774-9993/217-501 WAGO Pre-assembled Connector Systems Image 2
774-9993/217-501 WAGO Pre-assembled Connector Systems Image 3
774-9993/217-501 WAGO Pre-assembled Connector Systems Image 4
774-9993/217-501 WAGO Pre-assembled Connector Systems Image 5
Image may differ
Unit Price (€ / pc.)
26.7036 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
26.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
26.7036 €

Connection cable, 774-9993/217-501, WAGO

This Connecting line allows assembly of fine-stranded and solid conductors. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.

This pluggable installation connector is designed for a voltage load of up to 20 A. Therefore, it can also be used for high power loads. This product fits into drill holes and conduits with diameters up to 20 mm. The Connecting line is free of halogen. This eliminates the addition of environmental pollutants during production. It also achieves a higher fire class, since halogen-free materials do not easily ignite.

Features

  • For any mains application
  • Ready for immediate use
  • Fast, secure installation
Technical specifications
Connection (1) plug
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 5 m
Coding A
Cable cross-section 2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
