774-9993/217-702 | WAGO

Connection line, 7 m, plug straight to open end, 2.5 mm², 774-9993/217-702

Order No.: 44P8482
EAN: 4045454324896
MPN:
774-9993/217-702
Series: 774
WAGO

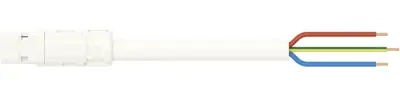

774-9993/217-702 WAGO Pre-assembled Connector Systems Image 1
774-9993/217-702 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
33.2724 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
33.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
33.2724 €

Connection cable, 774-9993/217-702, WAGO

This Connecting line supports rapid, correct installation. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.

This product has a current rating of 20 A - therefore it is also suitable for robust loads. It is suitable for drill holes and conduits with diameters up to 20 mm. This product meets all the mandatory fire protection requirements of fire class E; thus it can be used in areas where fire safety is relevant. The Connecting line is halogen-free. This eliminates the addition of environmental pollutants during production. It also increases the fire class, since halogen-free materials do not easily ignite.

Features

  • Saves time, since no wiring is required at the construction site
  • With A coding for use in many general mains applications
  • Ready to install and use immediately
  • Convenient installation and commissioning
Technical specifications
Connection (1) plug
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 7 m
Coding A
Cable cross-section 2.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
