774-9994/006-502 | WAGO
Connecting line, 5 m, socket straight to plug straight, 1.5 mm², 774-9994/006-502
Unit Price (€ / pc.)
24.7282 € *
Available: 0 pcs.
Leadtime: On Request **

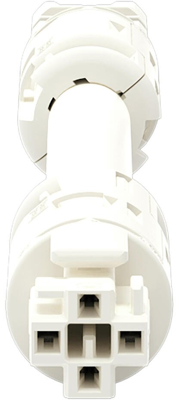

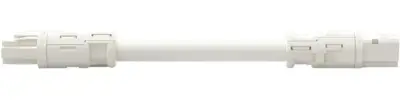

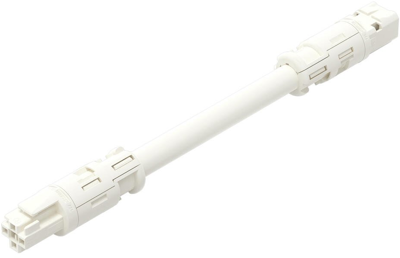

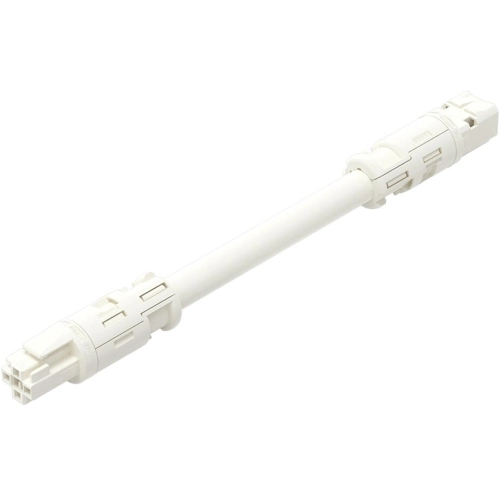

Pre-assembled interconnecting cable, 774-9994/006-502, WAGO
This Connecting line 4-pole is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. It fit into drill holes and conduits with diameters up to 20 mm.
Features
- With A coding for a great number of applications
- Guarantees safe use
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 5 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
