774-9994/016-202 | WAGO

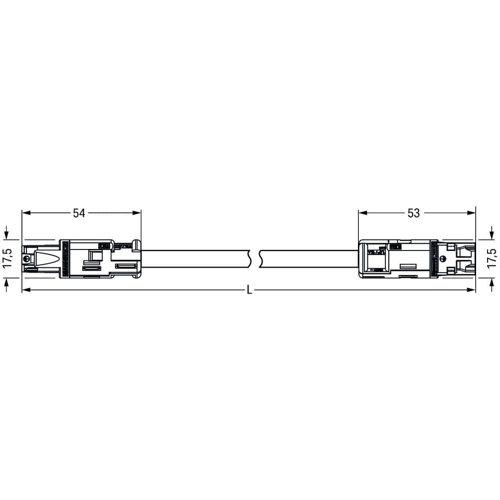

Connecting line, 2 m, socket straight to plug straight, 1.5 mm², 774-9994/016-202
Unit Price (€ / pc.)
24.8948 € *
Available: 0 pcs.
Leadtime: On Request **
Pre-assembled interconnecting cable, 774-9994/016-202, WAGO
Connecting line with locking latch with mechanical coding and color coding of the pluggable installation connector to ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This product fits like a glove into conduits or boreholes thanks to its design.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for use in a large number of general mains applications
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | plug | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 2 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
