774-9994/106-501 | WAGO

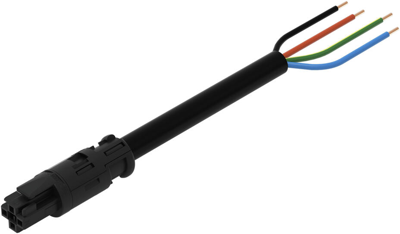

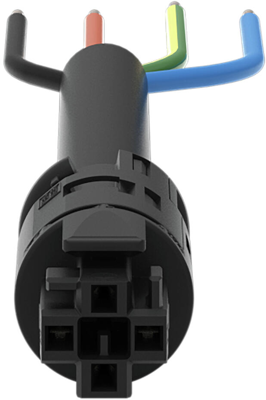

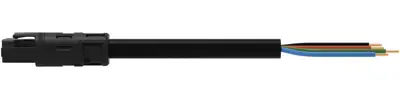

Connection line, 5 m, socket straight to open end, 1.5 mm², 774-9994/106-501
Connection cable, 774-9994/106-501, WAGO
Connecting line for signal and power transmission. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
This product features a round design that is ideal for use in conduits with an inner diameter of 20 mm, for example in the prefabricated house sector. This product meets all the mandatory safety requirements of fire class E; thus it can be used in areas where fire safety is relevant.
Features
- With A coding for a great number of applications
- Ready to install and use immediately
- Convenient installation and commissioning
Connection (1) | socket | |
Connection (2) | open end | |
Version | connection line | |
Connection 1 design | straight | |
Cable length | 5 m | |
Cable cross-section | 1.5 mm² |
Country of origin | DE |
Customs tariff number | 85444290 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
