774-9994/106-701 | WAGO

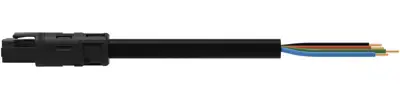

Connection line, 7 m, socket straight to open end, 1.5 mm², 774-9994/106-701
Unit Price (€ / pc.)
25.4422 € *
Available: 0 pcs.
Leadtime: On Request **
Connection cable, 774-9994/106-701, WAGO

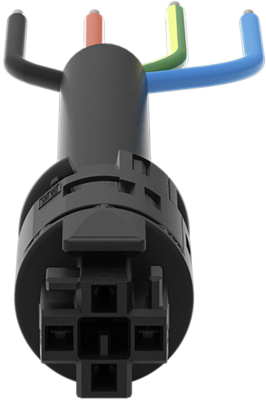

This Connecting line with color coding and mechanical coding of the pluggable installation connector ensures error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. This product fits like a glove into boreholes or conduits thanks to its design.
Features
- Saves time, since no wiring is required at the construction site
- With A coding for a large number of uses
- Convenient installation and commissioning
Technical specifications
| Connection (1) | socket | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 7 m | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
