891-8982/116-502 | WAGO

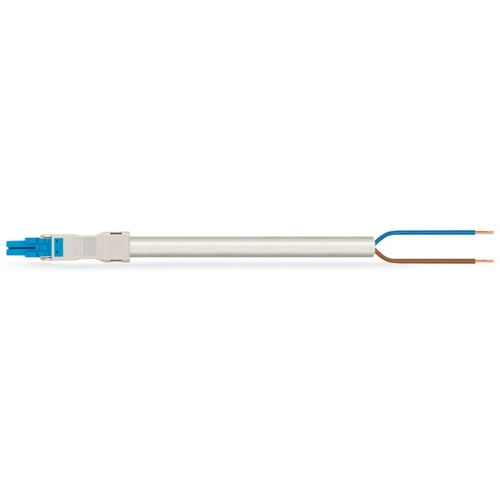

Connecting line, 891-8982/116-502, WAGO

For power and signal transmission: The WINSTA MINI Connecting line rated current 16 A. WAGO pluggable installation connectors can be used when criteria repeat or are distributed on a specific grid, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP40. Users' fingers and tools will never come into contact with live elements. I coding in blue is used to markWINSTA MINI pluggable installation connectors, which are used above all in building automation for controlling lighting.WINSTA MINI is our response to the trend toward miniaturisation. Our smallest pluggable connection system is very good for lights, for instance, since due to LED technology, these offer much less space for the connection technology. This product meets all the mandatory fire protection requirements of fire class E; thus it can be used in areas where fire safety is relevant. Not using halogen additives in the manufacture of this Connecting line substantially improves fire safety and reduces environmental contamination.

A socket and a free end are available. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with fire class E from WAGO.

Features

• Effective protection against mismating
• Easy tool-free operation, a wide range of coding options
• With I coding for use in the automation of buildings (lighting control)
• Flexible installation to save space
• Quick replacement of defective units during ongoing operation
