891-8995/106-205 | WAGO

Connecting line, 891-8995/106-205, WAGO

Use effective pluggable connections instead of laborious screw connections: With The WINSTA MINI Connecting line B coding. WAGO pluggable installation connectors can be used when criteria repeat or are planned on a specific grid, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid granular objects with a diameter of less than 1 mm in accordance with protection type IP40. Customer-specific pole marking is possible in addition.WINSTA MINI satisfies the demand for miniaturisation. Our smallest pluggable connection system is especially suitable for lights, for instance, since due to LED technology, these offer significantly less space for the connection technology. According to the European CPR, the fire class of the cables used for construction is essential for the safety of buildings, too. For buildings with medium-level safety requirements, cable assemblies with fire class E are suitable.

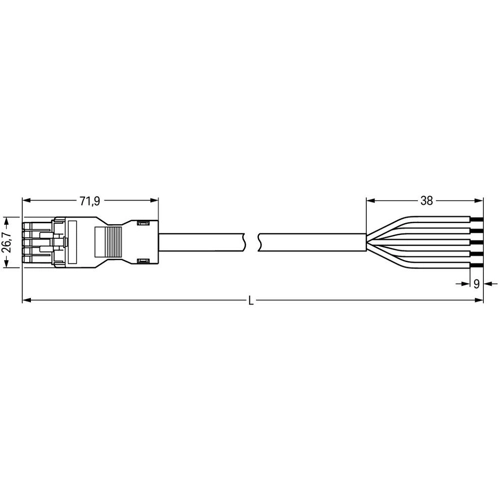

The Connecting line is provided with a socket and a free end. WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with protection against mismating from WAGO.

Features

• Effective protection against mismating
• Compact design for conductors with a cross-section up to 1.5 mm²
• With B coding for controllers such as sun blinds and lighting fixtures
• Ready for immediate use
• Quick replacement of defective units during ongoing operation
